| 제품소개 |
|
|
|
|
 |
|
|
|
| |
|
 |
|
|
카메라
본문
 |
● Flexible, rugged design for indoor,
outdoor and mobile use
● Fisheye lens with HDTV 1080p resolution
● Ultra-wide 194° horizontal field of view |
|
| |
| Discreet, wide area surveillance |
AXIS F1035-E Sensor Unit, together with an AXIS F Main Unit, provides wide area coverage with a fisheye view. It is ideal for highly discreet overview surveillance in indoor, outdoor and mobile surveillance applications; for example, at entrances, long corridors, around an ATM (automated teller machine), in emergency vehicles, buses and trams.
The small sensor unit can be installed in tight places, flush-mounted in a wall or ceiling, or incorporated in a lightbar on top of an emergency vehicle. The rugged, IP66-rated AXIS F1035-E withstands dust, rain, snow, vibrations, shock and temperature fluctuations.
AXIS F1035-E comprises an image sensor and a fisheye lens that provides a 194° horizontal field of view in 1080p resolution. It comes with a 3-m or 12-m (10-ft. or 39-ft.) pre-mounted cable for connection to an AXIS F Main Unit. The main unit can be placed further away in an indoor location, inside a vehicle or in an outdoor enclosure. AXIS F1035-E comes with an AXIS F8201 Vari-angle Mounting Bracket that enables the sensor unit to be secured and tilted in any position. |
| |
 |
| |
| 카다로그 |
 AXIS F Series |
| |
| 사용자 매뉴얼 |
AXIS F1035-E Sensor Unit - Installation guide
AXIS F8201 Vari-angle Mounting Bracket - Installation Guide
AXIS F8203 Fixed Mounting Bracket - Installation Guide |
| |

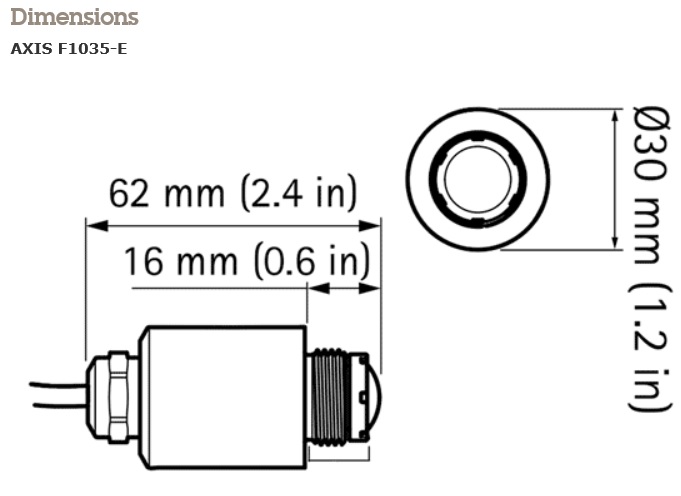

| 치수 |
 |
|
|
| |
|
