| ● Outdoor-ready with Arctic Temperature Control |
| ● -40 °C to 50 °C (-40 °F to 122 °F) |
| ● Dynamic capture and Lightfinder |
| ● Day/night functionality |
| ● Innovative installation features |
| ● Shock detection |
| |
| Outdoor-ready video surveillance |
The IP66-and NEMA 4X-rated AXIS Q1614-E offers aluminum and robust casing, sunshield to simplify installation time and costs. It is protected from dust, rain, snow and sun, and can operate in temperatures from -40 °C to 50 °C (-40 °F to 122 °F) using High PoE (30 W). The camera does not only functions at -40 °C (-40 °F), but it can also power up at that temperature following a power failure. This feature is known as Axis' Arctic Temperature Control. To guarantee heating, multiple heaters are placed in direct contact with the camera and the window.
AXIS Q1614-E offers a dual shell technology, where an internal shell stores heat in cold environments. A fan ventilates the air in hot environments, where the heat is transferred to the outer aluminum chassis for efficient cooling |
| |
| Innovative installation features |
Along with the common ease-of-installation capabilities known for AXIS Q16 Series, AXIS Q1614-E includes new innovative features to help installers to mount the camera. The leveling assistance guides to the correct level, meaning that the camera can be install wherever but always have a perfect image. The auto rotation functionality flips the image to the right orientation, also when Corridor Format. The camera is further protected with shock detection, a capability that sends an alarm to personnel during attempted vandalism. Focus assistant, remote back focus and pixel counter are capabilities supported by AXIS Q1614-E.
Moreover, the outdoor-ready camera supports one-cable installation thanks to support for PoE. A sunshield and a wall bracket are included to facilitate the installation. For higher flexibility, three cable gaskets holes are available for an Ethernet cable, a power cable and for an external device connected via the camera’s I/O ports. In addition, the cables are vandal protected and the front window is replaceable. |
| |
| HDTV 720p at 50/60 fps |
AXIS Q1614-E delivers highly detailed video in fast-paced environments. Identify of an incident is easy thanks to clear video with 50 or 60 frames per second in HDTV 720p video quality
The outdoor-ready AXIS Q1614-E offers the same high-quality features as AXIS Q1614 Network Camera. |
| |
| 카다로그 |
 AXIS Q16 Network Camera Series |
| |
| 사용자 매뉴얼 |
AXIS Q1614-E Network Camera - User Manual
AXIS Q1614-E Network Camera Installation Guide |
| |

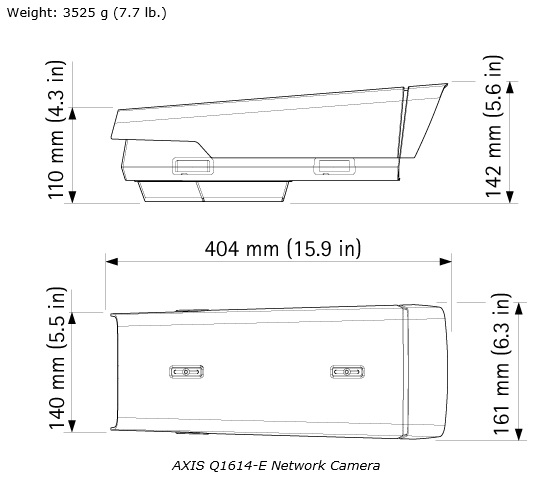

| 치수 |
 |
